FEKA VS 1000 M-A

R10,836.00

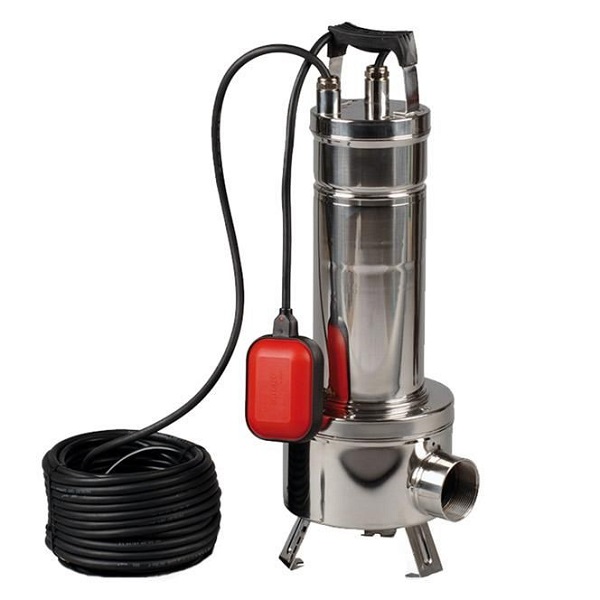

DAB Feka VS 1000 M-A 1.0kW 220V Stainless Steel Submersible pump for Sewage & waste water with float switch.

Submersible centrifugal pump with liquid vortex cast steel impeller (technopolymer impeller for Feka VX), suitable for pumping sewer water and waste water in general containing solids up to a maximum size of 50 mm.
Handle with insulating rubber cover. AISI 316 stainless steel drive shaft. Double mechanical seal with intermediate oil chamber (atoxic oil), in carbon/alumina on the motor side and silicon carbide/silicon carbide on the pump side.



Category:

Description

FEKA VS 1000 M-A

Motor protection class: IP 68.
Insulation class: F.
Standard voltage: 220-240V 50Hz Single-phase – 400V 50Hz Three-phase
Continual running with liquid at 35 °C and pump completely submersible. The single-phase version can be supplied with float for automatic function.
Power supply cable: 10 mt of H07RN-F cable with Shuko plug for the single-phase version and 10 meters of H07RN-F cable for the three-phase version.
Operating range: from 0 to 32 m3/h with head up to 14 mt.
Pumped liquid: sewer water and waste water in general and non aggressive.
Liquid temperature range: from 0°C to +35°C for household use (EN 60335-2-41), from 0°C to +50°C for other uses.
Maximum ambient temperature for Feka VS 1000 M-A running with submersible motor: +40°C.
Maximum immersion depth: 10 mt.
Installation: fixed or port
